Mining Vehicle Automatic Fire Suppression System Activated by Detection Tube
- Products Description
IJFFG Mining machine automatic fire suppression systems are safety mechanisms designed to detect and extinguish fires in mining equipment and environments. These systems typically include:
Fire detection: Sensors that can detect heat, smoke, or flames. These sensors continuously monitor the machine and its surroundings.
Automatic activation: Once a fire is detected, the system automatically activates the suppressant without human intervention, which is critical in remote or hazardous areas.
Here, let us introduce to you the mining machinery automatic fire extinguishing system activated by the Temperature Detection Tubing/ Pneumatic Valve.

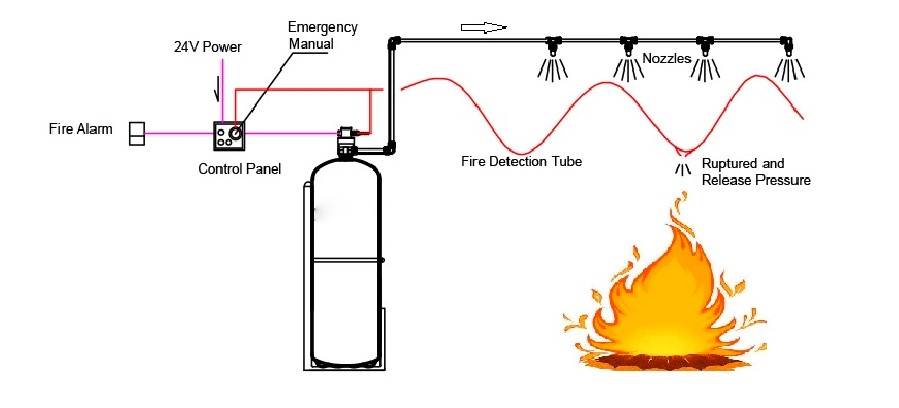

Products Working Principle
Products Working Principle
Temperature Detection Tubing Model
The detection cable is flexible, it connect to control panel, and detect the temperature anywhere in protected space, once temperature reach 180℃(or 138℃), the detection cable send signal to control panel, and control panel will activate the solenoid valve to open it, then the fire agent was discharged from discharge pipes and nozzles, and activate the fire alarm at the same time, and the control panel will output signal to vehicle controller for shutting off the engine. On the control panel, there is a manual button, reset button, lights, etc. in Emergency pushing the manual button can activate the fire system too. And the control panel was connect to 2pcs or more remote manual buttons. If the detection cable not connected to control panel or damaged the, the control panel will alarm.
Activation Temperature: 138℃ or 180 ℃ Power Required: 24V DC (Transformer Optional) Agent: AFF FOAM, Powder, FK-5112, Coldfire, F500, etc.
Products Specifications
comparison of product parameters
| IJFFG Mining Machine Fire Suppression Systems | |||
| Brand | IJFFG | ||
| Capacity | 6L, 9L, 12L, 18L,19L, 20L, 25L, 45L, 50L,65L, 100L, 106L | ||
| Agent | Foam / Dry Powder / FK-5112 | ||
| Working Pressure | 14Bar | ||
| Testing Pressure | 27Bar | ||
| Cylinder Material | Steel red painting Or Stainless Steel 304 | ||
| Certificate | UN ECE R107/CE | ||
Contents of this Fire System
5

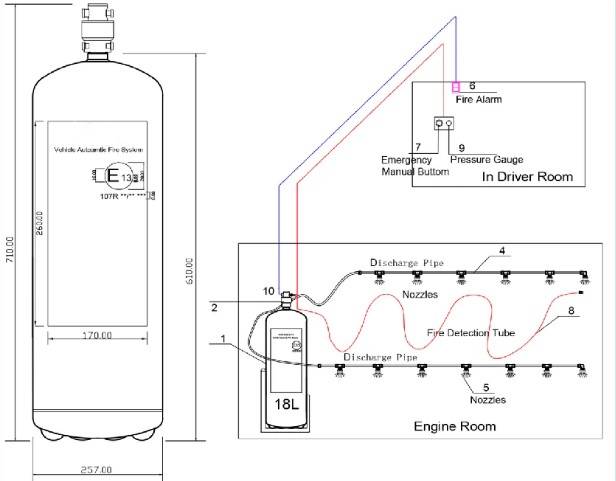

Diagram of Design
Single Bottle Detection Cable Type:
Packing & Shipping
