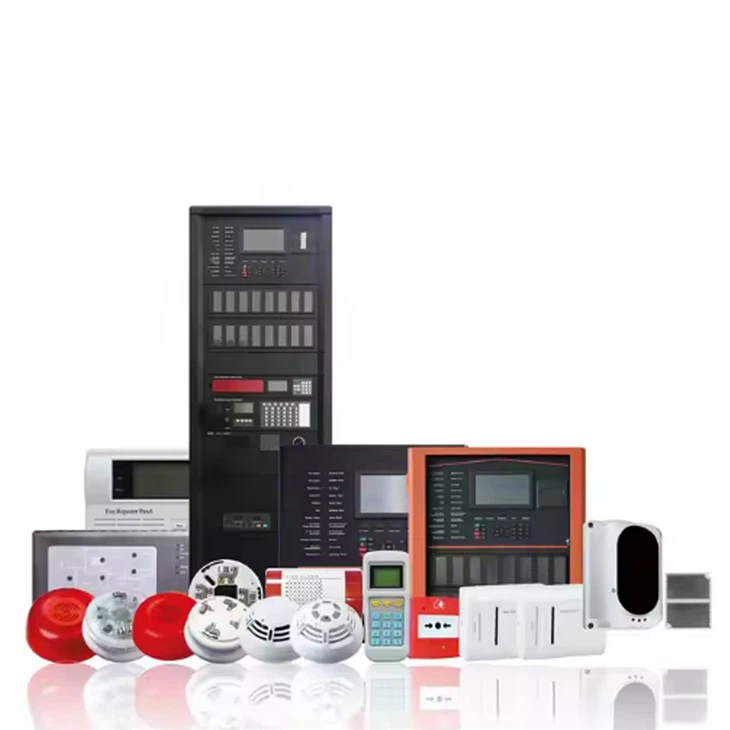

Addressable Fire Alarm System

When it comes to fire safety, Addressable fire alarm systems are an integrated solution to prevent fire incidents. They have the power to take on the largest projects and the flexibility to deliver tailored solutions to each facility's unique requirements. System-wide addressability makes them easier to install and maintain, and helps pinpoint alarm locations for a more effective response. These systems provide real-time safety for your lives and assets as well as are fully compatible with 3rd party management systems.

Products Working Principle

The smoke and temperature alarm detect the fire, and the signal is transmitted to the control panel. The control panel then issues instructions to turn on the circuit to quickly heat the glass bubble, so that the glass bubble breaks and sprays. Each fire extinguisher in the entire protection area sprays at the same time, and the control panel sends out signals at the same time to make the sound and light alarm sound an alarm.

Fire alarm System Details

i). About Heat Detector(TC5162)

Operating Voltage	Loop 24V(18.5V～26V)
Operating Current	Standby current: ≤0.3mA;Alarm current: ≤0.8mA
Operating Environment	Temperature: -10℃~+50℃;Relative Humidity: ≤90%, non-condensing
Indicator	Red, Flashes when polling,illuminates in alarm
Ingress protection rating	IP33
Material and color of enclosure	ABS; Milky white
Coding method	Electronically coding
Code range	1～255
Weight / Dimension	110g / 100mm×50mm (with base)
Mounting hole distance	60mm

ii). About Smoke Detector(TC5161)

Operating Voltage	Loop 24V(18.5V~26V)
Operating Current	Standby current: ≤0.3mA;Alarm current: ≤0.8mA
Operating Environment	Temperature: -10℃~+55℃;Relative Humidity: ≤95%, non-condensing
Indicator	Red, Flashes when polling,illuminates in alarm
Ingress protection rating	IP23
Material and color of enclosure	ABS; Milky white
Coding method	Electronically coding
Code range	1～255
Weight / Dimension	110g /100mm×51mm (with base)
Mounting hole distance	60mm

iii). About Auto/Manual Switch Module(TC-S5701)

Operating Voltage	Loop 24V(18.5V~26V)
Operating Current	≤1mA
Operating Environment	Temperature: -10℃~+55℃;Relative Humidity: ≤95%, non-condensing
Indicator	Red
Ingress protection rating	IP23
Material and color of enclosure	ABS; Porcelain white
Weight	About 110g(with base)
Mounting hole distance	60mm
Dimension (L×W×H)	86mm×38mm×86mm (with base)

iv). Addressable Sounder Strobe(TCSG5266)

Operating Voltage	Loop: 24V (16V～28V);Power:DC24V (DC19V～DC28V)
Standby current	Loop: ≤0.2mA;Power: ≤0.5mA
Operating Current	Loop: ≤1.5mA;Power: ≤50mA
Operating Environment	Indoor (Non-residential);Temperature: -10°C～+50°C;Relative Humidity: ≤95%(40±2°C)
Sound level	80dB～115dB (A weighted)
Pitch shift periodic	3.5S～4.5S
Basic flashing frequency	1Hz～2Hz
Weight	200g
Dimension (L×W×H)	115mm×55.3mm×140mm

v). About Emergency Start/Abort Switch(TC-S512)

Operating Voltage	DC24V (DC16V～DC28V)
Operating Current	≤1mA
Operating Environment	Temperature: -10°C～+55°C,Relative Humidity: ≤95% (40±2°C)
Indicator	Red,Flashes when polling Illuminatesin action
Material and color of enclosure	ABS; Porcelain white
Weight	About 110g(with base)
Mounting hole distance	60mm
Dimension (L×W×H)	80mm×55mm×100mm (with base)

vi). Gas Fire-extinguishing Control Panel(JB-QB-QTC5015)

Mains supply	AC220V (3A),Voltage range: +10%～-15%
Standby battery	DC12V/12AH sealed lead acid battery *2
LCD screen size	4.3-inch color LCD screen
Operating Environment	Temperature: 0°C～+40°C;Relative Humidity: ≤95%, non-condensing
Capacity	510 addressable points
Communication Interface	RS485,CAN,USB
Dimension (L×W×H)	385mm×134mm×510mm

vii). Addressable Single I/O Module (TCMK5263)

Operating Voltage	Loop:24V (18.5V～26V);Power: DC24V (DC19V～DC28V)
Standby current	Loop: ≤0.2mA;Power: ≤2mA
Starting current	Loop: ≤2mA;Power: ≤22mA
Operating Environment	Temperature: -10°C～+55°C;Relative Humidity: ≤95%, non-condensing
Output capacity	Passive:Capacity: DC30V/3A;Contact resistance in normal condition: 100kΩ;Closed when activated;Suitable for DC or AC12V～48V;Active output: DC24V/1.5A
Indicator	Red,Input indicator,Flashes when polling,Illuminates in action,Output indicator,Illuminates in action
Coding method	Electronically coding
Code range	1～255
Material and color of enclosure	ABS; Porcelain white
Weight	About 147g (with base)
Mounting hole distance	60mm
Dimension (L×W×H)	86mm×38mm×86mm (with base)

viii). Addressable Sounder Strobe(TCSG5267)

Operating Voltage	Loop: 24V (18.5V～26V)
Standby current	Loop: ≤0.4mA
Active current	Loop: ≤10mA
Operating Environment	Indoor (Non-residential);Temperature: -10°C～+50°C;Relative Humidity: ≤95%(40±2°C)
Sound level	75dB～115dB (A weighted)
Pitch shift periodic	3S～4S
Basic flashing frequency	1Hz～1.5Hz
Weight	About 200g
Mounting hole distance	60mm
Dimension	φ101mm×51mm
