Products Description

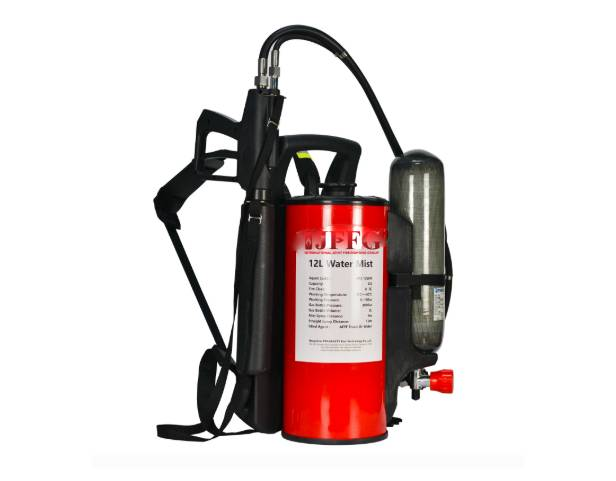

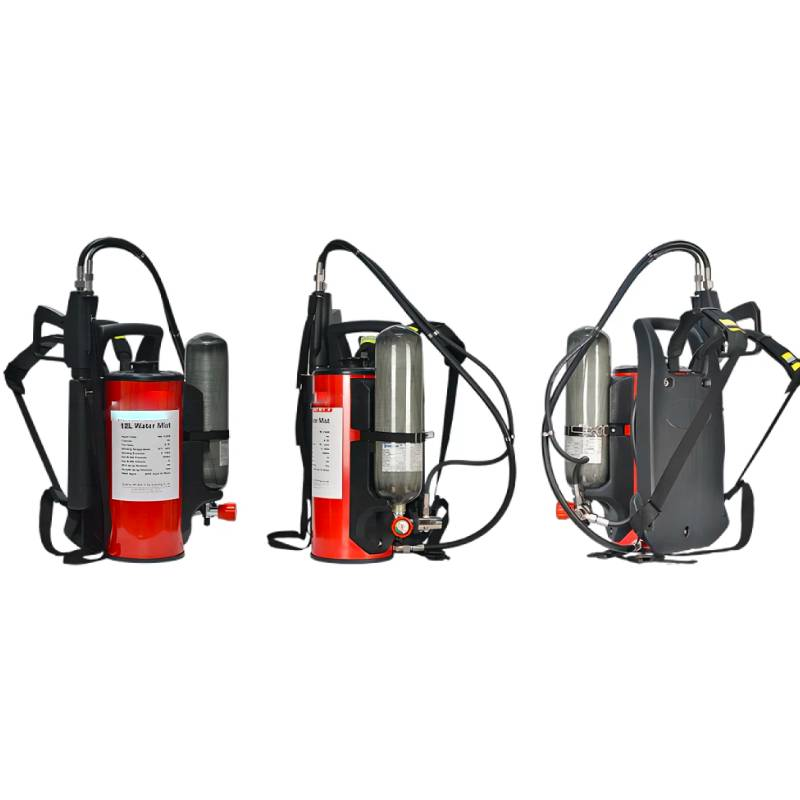

Backpack type:

We specialize in harnessing water mist technology in portable formats that has given firefighting anew capability around the world. The portable products bring in significant reductions in response time, better accessibility and efficient firefighting thus helping control firefinches initial stages. The Backpack is available with the option of usage along with A breathing apparatus. Backpack systems are ideal for use in industry, first intervention system in coal mine, fire trucks Emergency vehicles, offshore marine.

Products Specifications:

Fire Extinguishing Agent Tank
Filling capacity	9Liters	10Liters	12Liters
Material	Stainless Steel	Stainless Steel	Stainless Steel
Working Pressure	7.5bar	7.5bar	7.5bar
Propellant Gas Bottle
Medium	Compressed Air	Compressed Air	Compressed Air
Pressure Cylinder	Fillingpressure: 300bar	Fillingpressure: 300bar	Fillingpressure: 300bar
	Volume: 3 litres
Technical Specification
Operating time	Appr.25 sec.	Appr.25 sec.	Appr.25 sec.
Flow Rate	24 litres /min	24 litres /min	24 litres /min
Operating temperature	Tmin +5°C;T max +60°C
Carrying device	Ergonomically shaped	Ergonomically shaped	Ergonomically shaped
Extinguishing Gun/ Fire Extinguisher Hose
Changeover time	Appr. 3 sec. (jettospray mode)	Appr. 3 sec. (jettospray mode)	Appr. 3 sec. (jettospray mode)
Lancing distance	Appr. 13 – 16m jet mode	Appr. 13 – 16m jet mode	Appr. 13 – 17m jet mode
	Appr. 6 – 7m spray mode	Appr. 6 – 7m spray mode	Appr. 6 – 7m spray mode
Ratings (extinguishing performance)
A Fire Class	55A (as per EN3)	55A (as per EN3)	55A (as per EN3)
B Fire Class	233 B (asper EN3)	233 B (asper EN3)	233 B (asper EN3)
	IIB (EN 1866)	IIB (EN 1866)	IIB (EN 1866)

Products Application

It has applied advanced aerodynamics technology from flow engineering
applications involving liquid/gas mixtures tocreate series of water mist systems.
