FM200 Total Flooding System

SUS304 Stainless Steel FM200 Total Flooding Fire System

Products Description

The FM200 /HFC-227ea total flooding fire suppression system offers fast and residue-free extinguishment of fires in critical environments. Utilizing a clean agent that evaporates quickly upon discharge, it effectively extinguishes fires without leaving residue, making it ideal for sensitive areas like data centers, control rooms, and museums. This system reacts swiftly to suppress fires, minimizing damage and downtime while ensuring the safety of personnel and assets. FM200 is environmentally sustainable with a low global warming potential and zero ozone depletion potential, aligning with strict regulatory standards. Its versatile design allows for easy installation and integration with existing fire detection systems, providing reliable fire protection tailored to specific spatial requirements. With its rapid response and minimal environmental impact, the FM200 system stands as a state-of-the-art solution for protecting valuable assets and maintaining operational continuity in critical infrastructures.

Product Advantage

Easy Operate: Convenient and easy to operate
CCC Authentication: Quality assurance,safety genuine
Alarm system: Real-time detection, alert alerts
Automatic: Fire extinguishing automatically to reduce losses
Not conductive: Safety agent to pro-tect the machine
Environmentally: Green is easy to clean, no residue
Innocuity: Safe medicine, no poison harmless
Fast Fire Extinguishing: Fire extinguishing quickly reduces damage

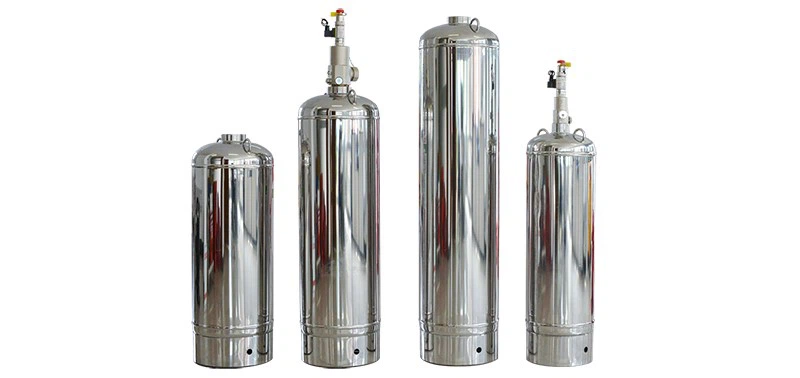

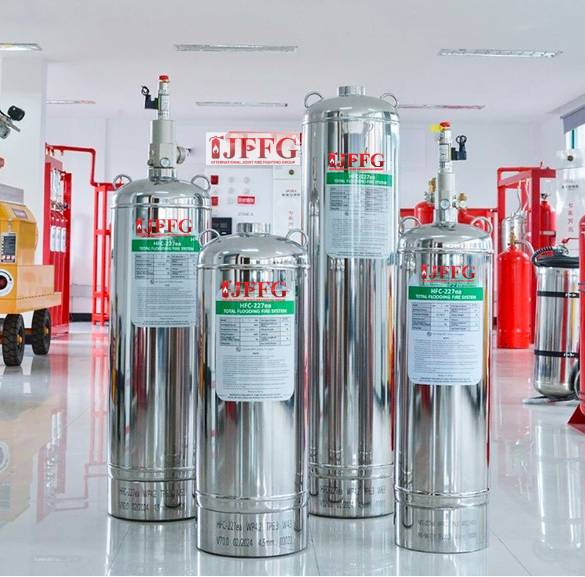

High Quality: SUS304 stainless steel material cylinder

Products Principle

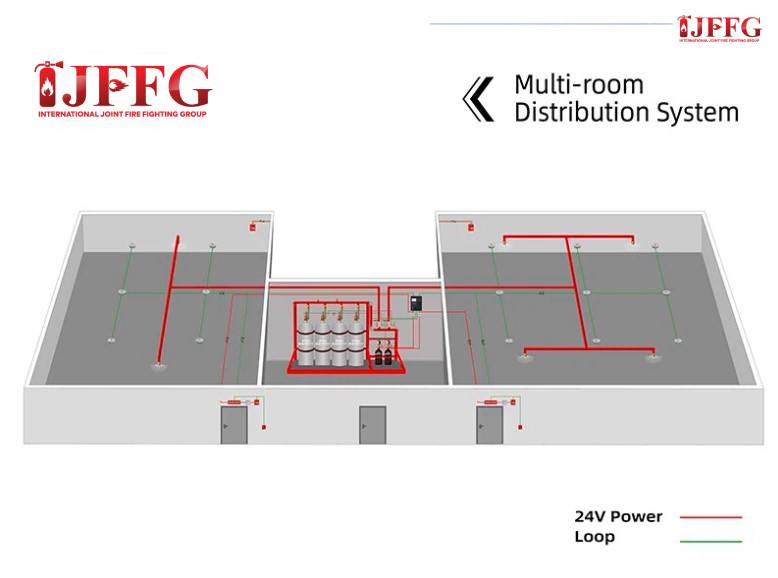

1.Pilot Cylinder Activation Mode

The Pilot Cylinder total flooding FM200 fire system operates as follows.

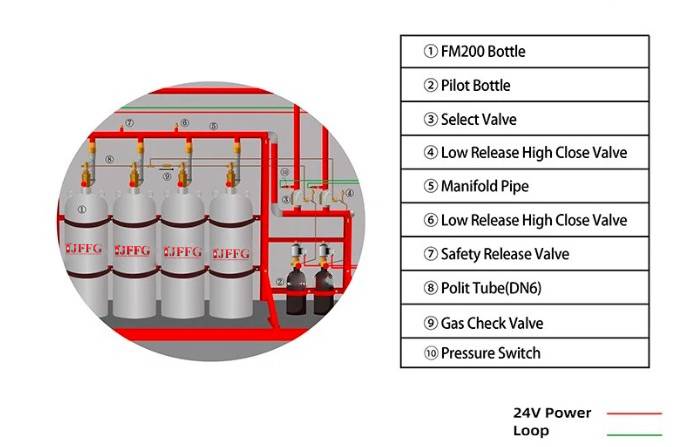

1. Fire Suppression Process:

Detection and Activation: Upon fire detection, the system initiates the activation sequence.

Pilot Cylinder Activation: The pilot cylinder is activated either automatically upon detection or manually triggered. Activation of the pilot cylinder releases the pressurized gas or liquid stored within it.

Valve Operation: The release of pressure from the pilot cylinder operates valves within the system.

Solenoid Valve Opening: The pilot cylinder's operation triggers the opening of the main solenoid valve or valves that control the flow of FM200 from the storage containers.

Agent Discharge: FM200 is discharged through the distribution piping into the protected area. It quickly fills the space as a gas, displacing oxygen and effectively extinguishing the fire by cooling and interrupting the combustion process.

Your Heading

02. Solenoid valve Activation Mode

The solenoid valve total flooding FM200 fire system operates as follows.

Fire Suppression Process:

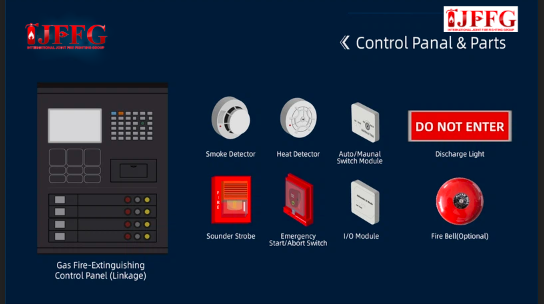

Fire Detection: Upon detection of a fire by the smoke alarm or temperature alarm, a signal is sent to the fire suppression system.

Signal Transmission: The signal is relayed to the control system which activates the solenoid valve.

Solenoid Valve Actuation: Upon receiving the signal, the solenoid valve opens, allowing FM200 to discharge from the storage container into the protected area through the piping network.

Extinguishing Action: FM200 rapidly fills the protected area as a harmless gas, effectively extinguishing or controlling the fire.

Products Parameters

1. Cylinders Paremeters

Item	Specification
Capacity	32L 70L 90L 120L 150L 180L 250L 345L 450L 500L, support OEM capacity
Material of Cylinder	Normal steel or SUS304 stainless steel
Spray Time	≤10s
Power	DC24V/1.6A
Max Working Pressure	4.2MPa, 5.6MPa, 8.0MPa.
Thread Size	≤70Lcylinder:PZ56/2-8UN.2A ≤90L Cylinder: PZ56/3-1/4"-8UN.2A ≤150L Cylinder: M64×2/3-1/4"-8UN.2A ≥180L Cylinder: M80×2/3-1/4"-8UN.2A

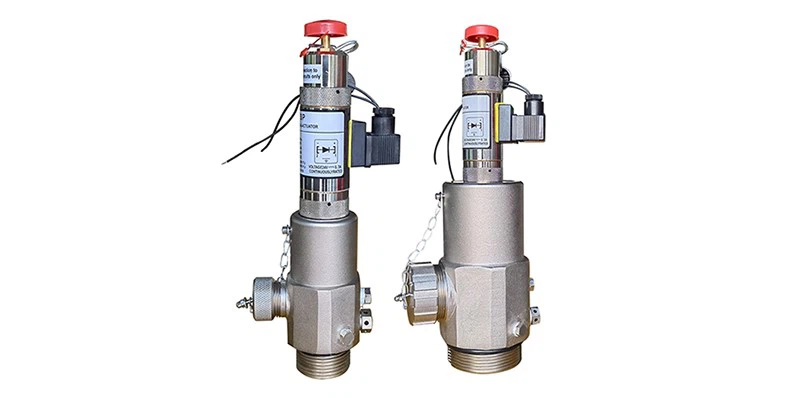

2. High Quality Head Valve Parameters

Code NO.	AV25/4.2-PRIAV25/5.3-PRI	AV50/4.2-PRIAV50/5.3-PRI
Size	G 1"	G 2"
Nech Thread	2-8UN.2A	3 1/4-8UN.2A
Nech Thread	G 1"	G 2"
High Pressure Flexible Hose Thread	G 1"	G 2"
Pressure Guage Thread	1/8" NPT	1/8" NPT
Working Pressure	6.7MPa	6.7MPa
Testing Pressure	10.05MPa	10.05MPa
Application Cylinder	<70L	70L 90L 120L 150L 180L

3. High Quality Pneumatic and Soleniod Valve Paremeters

Pneumatic Valve (High Quality Model)
Code NO.	APV-PRI
Thread	G 1"
Working Pressure	6.6MPa
Solenoid Valve (Hight Quality Model)
Code NO.	ASV90N-PRI
Thread	G 1"
Power	DC 24V
Drive Force	90N

4. Gas Check Valve and Pressure Switch

Gas Check Valve
Code NO.		GCV6/6.6-PRI
Inlet/Outlet		M14*1.5
Open Force		0.2MPa
Working Pressure		6.6MPa
Material		HPb59-1
Pressure Switch
Code NO.	PS0.8/5.3-PRI
Operating Pressure	0.8MPa±0.08MPa
Thread	RC 1/2"
Material		HPb59-1
