Products Description

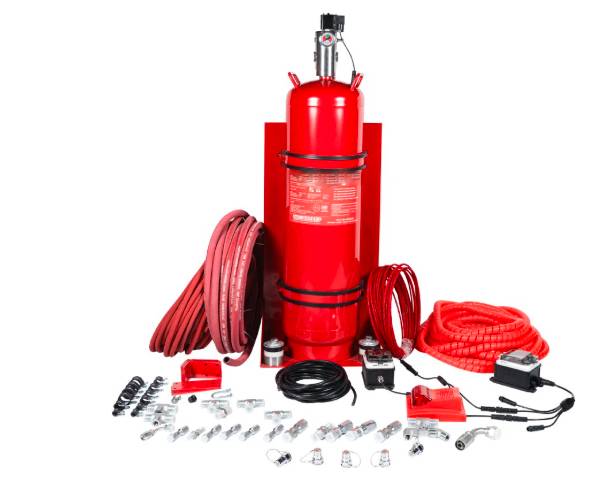

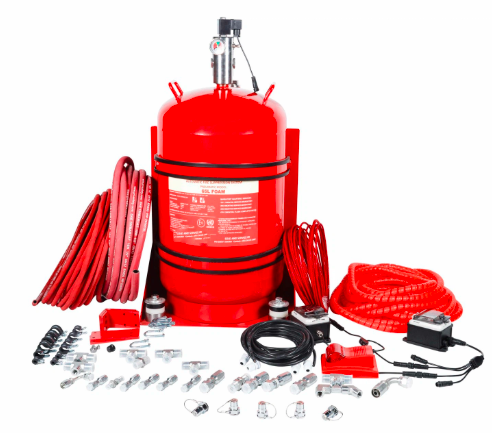

Solenoid Mining Machine Fire Suppression Systems FFS Kit for Mining
In Mining industry, the highly expensive and vital equipment are under extreme hazards for their constant day and night operation in harsh environments.The main threat a mining operation faces with is a fire.
IJFFG specializes in Automatic Fire Suppression System in Mining Industry, which handles the toughest of condition and ensures your assets are protected from the risks of fire damage at all times.
The systems typically consist in extinguishing agent stored in pressurized cylinders that are connected to the pneumatic
valve,discharge pipework and nozzles. During a fire,the detection tube ruptures a hole and release the pressure to move up the piston of valves ,and then the agent is released to put out fire with the fire alarm rising triggered by the signal from the pressure switch.
The systems provide a great protection to enclosed spaces,especially for the engine compartment,being widely used for mining machines such as Dump Trucks,Excavators, Drill Rigs,Crushers,Screeners,Weigh feeders etc.
Products Features
• Instantaneous Activation by Solenoid Actuator
• Multiple Triggers-fast, automatic actuation
• Highly Effective-high quality and well- engineered system
• Handling the toughest conditions
• Automatic fire suppression: requires no human activation
• Highly Reliable-linear heat and flame detection
• Suitable for Mining Industry
• More cost-effective option
• Simple installation and maintenance
Technical Parameter
PRI-SAFETY Mining Machine Fire Suppression Systems
| Brand Name | IJFFG |
| Capacity | 13L, 20L, 25L, 35L, 45L, 65L, 100L |
| Agent | Foam / Dry Powder / FK-5112 |
| Working Pressure | 14Bar |
| Testing Pressure | 27Bar |
| Cylinder Material | Steel red painting Or Stainless Steel 304 |
| Certificate | UN ECE R107 , CE |
Note: For Vehicle Engine Room, we can choose different fire agents, such as Water, AFFF3% Foam, FK-51112, or Dry Powder agents. The different systems are with different discharge tube and nozzles.
Specification
Mining Fire System-- Temperature Detection Cable Type & Solenoid Valve Working Mechanism:
1. The detection cable is flexible, it connects to control panel, and detect the temperature anywhere in protected space, once temperature reach 180ºC(or 138ºC), the detection cable send signal to control panel, and control panel will activate the solenoid valve to open it, then the fire agent was discharged from discharge pipes and nozzles, and activate the fire alarm at the same time, and the control panel will output signal to vehicle controller for shutting off the engine.
2. On the control panel, there is a manual button, reset button, lights, etc. in Emergency pushing the manual button can activate the fire system too. And the control panel was connect to 2pcs or more remote manual buttons. If the detection cable not connected to control panel or damaged the, the control panel will alarm.
Activation Temperature: 138ºC or 180 ºC Power Required: 24V DC (Transformer Optional) Agent: AFF FOAM, Powder, FK-5112, Coldfire, F500, etc.

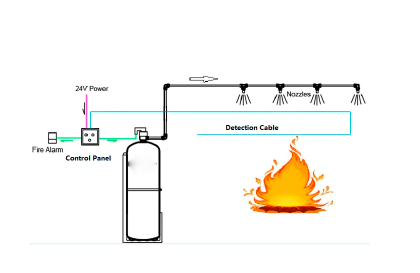

Diagram & Components
Application
PRI-SAFETY Mining Machine Fire Suppression Systems is ideal for use in:
• Electric/Hydraulic Mining Shovels
• Draglines
• Wheel Loaders
• Dump Trucks
• Continuous Miners
• Underground and Surface Mining Vehicles

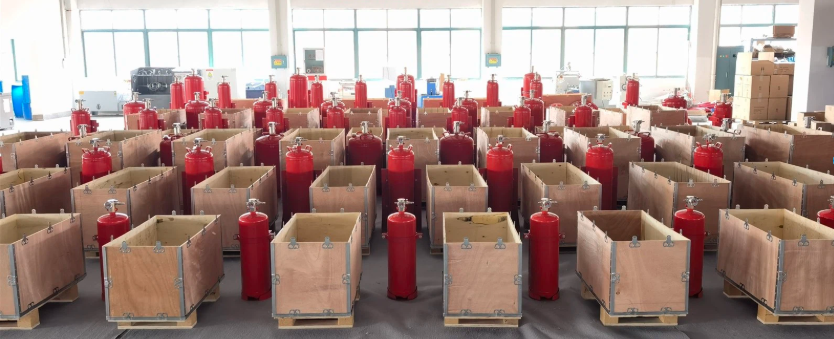

Packing & Delivery
