Introduction:

·TUV CE0036 certificated, CE approved

·Material: SS304

·Suitable against class A, class B

·All fire extinguishers must be serviced in accordance with BS5306

·Stainless Steel polished or RAL3000 red painting

·All fire extinguishers are tested no leakage.

·Chemical Agent: AFFF3% Foam, Pressured with nitrogen gas.

·Working Pressure: 14Bar; Test Pressure: 27Bar;

Specification:

Capacity	1L	2L	3L	4L	6L	9L	12L
Code	SSF-01	SSF-02	SSF-03	SSF-04	SSF-06	SSF-09	SSF-012
Out-dia.(mm)	Ф85	Ф110	Ф130	Ф140	Ф160	Ф180	Ф180
Cylinder Length (mm)	270	302	346	410	450	485	621
Cylinder Weight (kg)	0.66	1.17	1.69	2.1	2.95	3.6	4.4
Volume (L)	1.29	2.4	3.9	5.4	7.8	10.5	13.38
Full Weight (kg)	1	2	3	4	6	9	12
Temperature Range	0+60℃	0+60℃	0+60℃	0+60℃	0+60℃	0+60℃	0+60℃
Working Pressure(bar)	14	14	14	14	14	14	14
Testing Pressure(bar)	27	27	27	27	27	27	27
Min Wall-thickness	0.78	1.07	1.13	1.13	1.23	1.3	1.3
Material	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304
Fire Rate	5A 21B C	8A 34 BC	13A 70B C	13A 89B C	27A 144B C	34A 183B C	43A 233B C

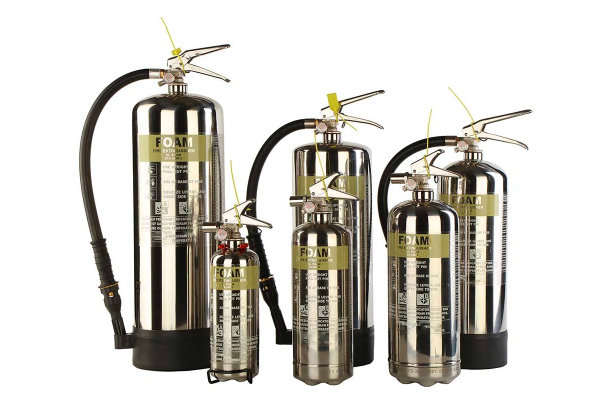

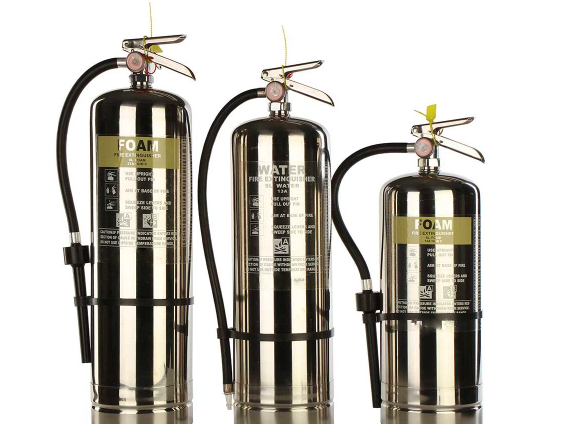

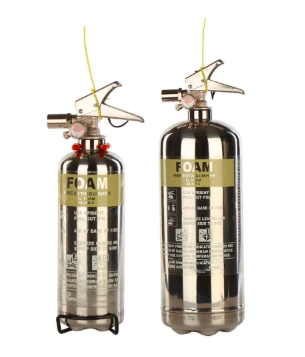

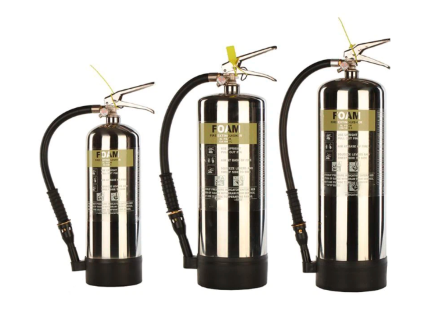

More photo:

American model:
