Coldfire Stainless Steel Extinguisher For Lithium Battery Fire

1- Products Description

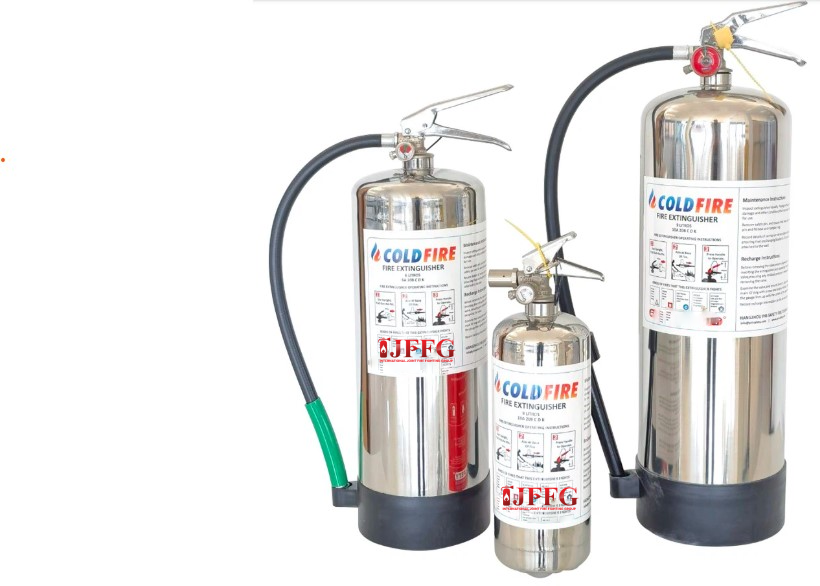

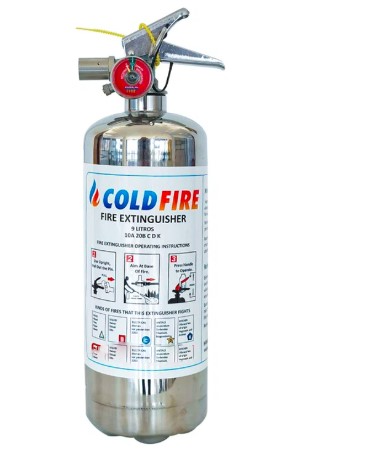

The ColdFire Stainless Steel Fire Extinguisher

is a high-performance fire safety device distinguished by its durable stainless steel construction and advanced extinguishing agent. Designed for versatility and reliability, it is engineered to combat multiple fire classes effectively while addressing common drawbacks of traditional extinguishers.

It can extinguish fires rapidly. Moreover, its stainless steel material is highly corrosion-resistant, ensuring a long service life. Additionally, the ColdFire fire extinguishing agent is non-toxic, harmless, and causes no secondary pollution.

There are various specifications available, such as 1L, 2L, 3L, 4L, 6L, 9L, 12L, 25L, 50L, etc., and other customized size. The stainless steel materials include SUS304 SUS304 1/2H, SS316, SS316L, etc.

The fire extinguishing agent we use, the ColdFire agent, has many advantages: it is fluoride-free, non-toxic, and environmentally friendly; it prevents re-ignition, removes heat, encapsulates the fuel source, and reduces hydrocarbon smoke. What's more, it can extinguish Class A fires, Class B fires, Class C fires, Class D fires, Class K fires, Class L fires(Lithium battery fires).

2- Cold fire Agent Instruction

Cold Fire

is an environmentally friendly fire extinguishing agent, leading the way in firefighting technology, and revolutionizing the way first responders combat fires. Cold Fire gets its name from its extraordinary ability to remove extreme heat. Cold Fire works to remove heat and the hydrocarbon fuel source from the fire tetrahedron. The suppressants in Cold Fire use water as a catalyst to penetrate and extinguish the fire more rapidly, using less water and thereby reducing water damage and water supply needs.

1. Fluoride - free

Our fire extinguishing agent is fluoride - free. By eliminating fluoride, we not only contribute to a more sustainable environment but also ensure that there are no harmful residues left behind after extinguishing a fire. This makes it an ideal choice for areas where environmental protection and human safety are of utmost importance.

2. For All types of fires

• Our fire extinguishing agents can be used on many types of fires. Class A Class B Class C Class D Class K Class L class fire can be used, and lithium battery fire is different from ordinary fire, its combustion process has a unique chemical reaction and high energy release.

3. Non - Toxic and Environmentally Friendly Our fire extinguishing agent is non - toxic, which means that in the event of a fire, not only does it extinguish the blaze efficiently, but it also does not release harmful substances into the air. Moreover, being environmentally friendly, it does not cause long - term damage to the ecosystem.

4. Prevents Re - ignition and Removes Heat Our fire extinguishing agent can prevent re - ignition. The fires can be particularly stubborn, often reigniting due to the residual heat and unreacted chemicals within the battery. Our fire agent forms a heat - resistant layer that effectively dissipates heat, preventing the temperature from rising to a level that could cause re - ignition.

5. Reduces Hydrocarbon Smoke Our fire extinguishing agent can reduce the generation of hydrocarbon smoke. It chemically reacts with the burning components to minimize the production of smoke - forming compounds. As a result, visibility is maintained during and after the fire - fighting process, facilitating rescue operations and minimizing the potential for smoke - related health issues.

Specification of Cold Fire Extinguisher:

Coldfire Stainless Steel Extinguisher for Lithium Battery Fire
Capacity	1L	2L	4L	6L	9L	25L	50L
Item No.	PRI-LF1/SC	PRI-LF2/SC	PRI-LF4/SC	PRI-LF6/SC	PRI-LF9/SC	PRI-LF25/SC	PRI-LF50/SC
Out-Dia.(mm)	90	110	135	162	182	250	325
Cylinder Length(mm)	240	317	408	436	500	625	908
Voluem(L)	1.25	2.5	4.8	7.4	11.2	30	60
Temperature Range	0~+60℃
Working Pressure(bar)	14	14	14	14	14	14	14
Testing Pressure(bar)	27	27	27	27	27	27	27
Discharge Time(s)	10	16	20	30	50	120	240
Fire Class	1A 2B CDK	2A 3B CDK	4A 5B CDK	6A 10B CDK	10A 20B CDK	55A IIB CDK	55A IIB CDK
Packing Size(mm)	570x240x380	610x260x440	150x150x520	170x170x555	195x195x655	470x430x960	500x450x1110
Quantity/CTN(pcs)	10	6	1	1	1	1	1
Quantity/20ft(pcs)	5600	4200	2400	1700	1200	150	110

3- Products Features

Key Features of SUS304 Coldfire Fire Extinguisher:

Stainless Steel Build:

Offers superior corrosion resistance, enhancing longevity and performance in harsh environments (e.g., marine, industrial, or humid settings).

Proprietary Extinguishing Agent:

Likely a non-toxic, biodegradable formula that rapidly cools and suppresses flames, minimizing residue and post-fire cleanup.

Multi-Class Effectiveness:

Typically rated for Class A (ordinary combustibles), Class B (flammable liquids), and Class C (electrical fires), making it adaptable for diverse scenarios.

Competitive Advantages:

Durability & Longevity: Stainless steel resists rust and degradation, reducing replacement frequency and maintenance costs. Suitable for extreme temperatures and corrosive environments.

Eco-Friendly & Safe: The agent is non-toxic, non-ozone-depleting, and leaves minimal residue, aligning with green standards. Safer for use in enclosed spaces compared to Co2 or chemical-based alternatives.

Enhanced Performance: Rapid cooling action suppresses fires faster, potentially requiring less agent volume. Effective on electrical fires without conductive residue, reducing equipment damage.

Versatility: Covers multiple fire classes, simplifying inventory for homes, offices, or industrial sites.

Aesthetic and Practical Design: Sleek stainless steel appearance suits modern interiors. Lightweight or ergonomic designs may improve handling despite robust construction.

Certifications & Compliance: Likely meets stringent standards (e.g., UL, EN, or CE), ensuring reliability and regulatory acceptance. Cost

Efficiency: Longer lifespan and reduced maintenance lower total ownership costs over time
