Total Flooding FM200 Fire Suppression System HFC-227ea
1. PRINCIPLES OF SYSTEM
Cabinet type FM200 fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.
2. PRODUCT ADVANTAGES
- Very swift fire suppression. Reach extinguishing level ≤10s.
- Safe to people. People is safe when exposed at the FM200 gas discharge level.
- Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
- Easy to clean. No residue left, and minimize damage to sensitive equipment.
- Environment friendly. Zero ozone depletion potential and zero global warming potential.
- Simple installation, with small storage space.
3. PRODUCT SPECIFICATION
A. PAREMATERS
| Item | Model | Volume(L) x Qty(unit) | Dimension | Maximum loading density of fire extinguishing agent | Stored Pressure (20ºC) | Max Working Pressure(50ºC) | Activate voltage/ current | Operating Temperature Range |
| 1 | GQQ40/2.5 | 40X1 | 450×400×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 2 | GQQ70/2.5 | 70X1 | 500×450×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 3 | GQQ90/2.5 | 90X1 | 500×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 4 | GQQ100/2.5 | 100X1 | 500×450×1700 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 5 | GQQ120/2.5 | 120X1 | 500×450×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 6 | GQQ150/2.5 | 150X1 | 550×500×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 7 | GQQ180/2.5 | 180X1 | 1000×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |

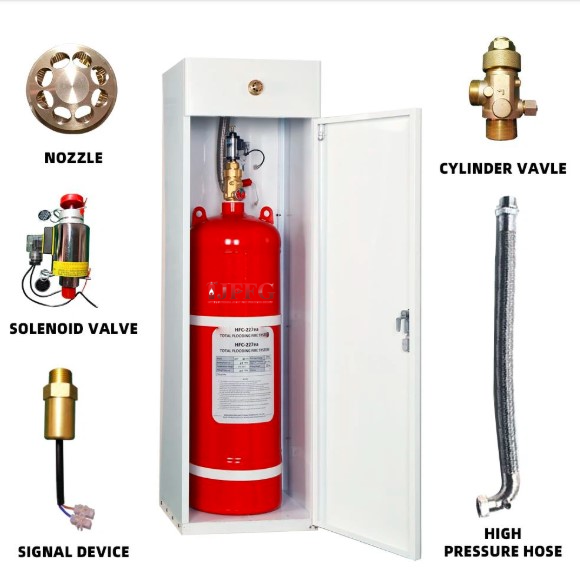

B. COMPONENTS
1. Storage cylinder with cabinet: Cylinder, container valve and solenoid valve, dip tube, etc.
2. High pressure hose: Connect cylinder valve and liquid check valve
3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent
4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.
C. WORKING DIAGRAM
4. INSTALLATION
5. APPLICATION
- Bank vaults
- Libraries
- Book stores
- Electronic data processing
- Telephone exchanges
- Communication centers
- Transformer and switchroom
- Control rooms
- Test laboratories
- Flammable liquid storage
6. PACKAGE
This system will be packed by pallet.
