Trolley DCP Dry Powder Fire Extinguisher
Product Feature.
- ·TUV CE0036 Standard
- ·Material: SUS304/ SUS316/ SS1/2H
- ·Suitable against class A, class B
- ·All fire extinguishers must be serviced in accordance with BS5306
- ·Stainless Steel polished or RAL3000 red painting
- ·All fire extinguishers are tested no leakage.
- ·Chemical Agent: Dry Powder, Pressured with nitrogen gas.
- ·Working Pressure: 14Bar;
- ·Test Pressure: 27Bar;
Product Specifications:
| 50/75/100L Stainless-Steel Foam Wheeled Fire Extinguisher | |||
| Capacity | 50L | 75L | 100L |
| Item No. | SS-50L | SS-75L | SS-100L |
| Out-dia.(mm) | Ф325 | Ф406 | Ф406 |
| Cylinder Length (mm) | 908 | 885 | 1145 |
| Cylinder Weight (kg) | 18.5 | 28.4 | 35.5 |
| Extinguisher Weight (kg) | 90 | 127 | 160 |
| Volume (L) | 60 | 85 | 120 |
| Temperautre Range | 0+60ºC | 0+60ºC | 0+60ºC |
| Working Pressure(bar) | 14Bar | 14Bar | 14Bar |
| Testig Pressure(bar) | 27Bar | 27Bar | 27Bar |
| Min Wall-thickness | 2.2 | 2.7 | 2.7 |
| Material | SS304/ SS316/ SS1/2H | S304/ SS316/ SS1/2H | SS304/ SS316/ SS1/2H |
| Fire Rate | 55A IIB | 55A IIB | 55A IIIB |
| Packing Size(mm) | 51×51×114 | 61×55×111 | 61×55×136 |
| Quantity/CTN(pcs) | 1 | 1 | 1 |
| Quantity/20ft(pcs) | 75 | 70 | 60 |

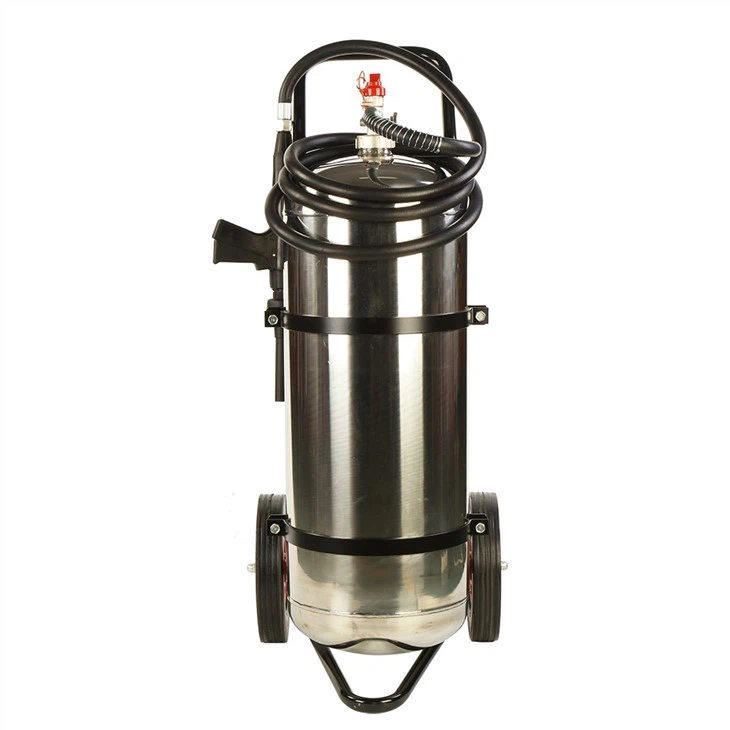

Product Picture:
