The IJFFG bladder tank is a carbon still pressure vessel containing an elastomeric separation bladder between the water and foam concentrate. The bladder permits water pressure tube transfer to the foam concentrate without the two fluids mixing together.

A IJFFG ration controller, as described in a separate date sheet, generates a water pressure drop by means of a reduced cross section where t water stream passes througt it . As the foam concentrate pressure is higher than the pressure at the tation controller , the foam starts flowing towarsa the water and mixing at a calibtated tatewhich is dependant on the water flow rate.

Construction Features

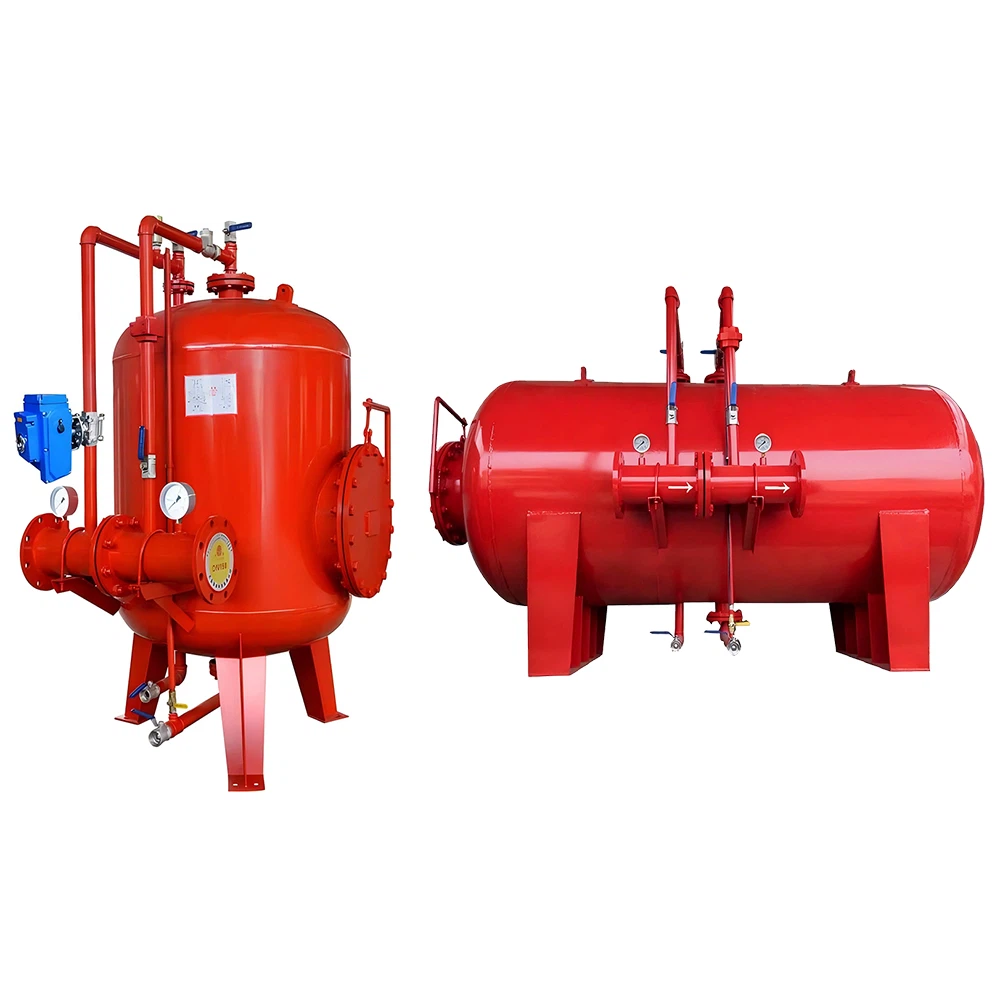

• Vertical type on legs or horizontal type on saddles . Legs and saddles are provided with fixing holes .
• Design pressure 175 psi(12 bar ).
• 100% pressure tested according to the applied design code but not less than 251 psi. Water and foam piping ( stainless stell as option )
• Machine welded circuferantial and longitudinal seams for maximum quality and durability
• Welded lifting lugs for easy handling operations
• Welded lifting lugs for easy handling operations
• Thermal relief valve provided on the water side
• Tank equipment with inside protection at any opening to ensure no damage to the
• bladder. Nameplate in corrosion resistant material .
• Nameplate holder to avoid undetected corrosion on the tank's sheel behind the plate

Options:

• Mixing ration selector 3% and 6%
• Flange size :According to customer require from 2 1/2" inch -8 inch
• Flow rate :According to customer requirement

STANDARD DESIGN DATE.
Design pressure : 175 psi(12 bar)
Test pressure: 251 psi(17.3 bar)
Capacity: see tables

Two different design of foam bladder, contents List:

Design A(Vertical Foam Bladder):

Capacity	L	W	H	H	D
500L	920	1145	1820	860	810
1000L	1190	1345	2100	890	1010
1500L	1290	1440	2410	900	1105
2000L	1400	1545	2610	900	1212
2500L	1525	1647	2720	915	1312
3000L	1620	1805	2855	930	1416
4000L	1830	2010	2875	970	1616

Design B(Horizontal Foam Tank):

Specification:

Capacity	L	W	H	H	D
1000L	1955	1250	1540	930	910
1500L	2230	1350	1640	930	1010
2000L	2485	1450	1740	930	1112
2500L	3010	1450	1740	930	1112
3000L	3040	1610	1880	960	1216
4000L	3430	1710	1980	960	1316
5000L	3670	1810	2080	960	1420
6000L	3830	1910	2180	960	1520
7000L	3935	2010	2280	960	1620
8000L	4300	2010	2280	960	1620
10000L	4625	2220	2480	960	4625

Application:

The IJFFG bladder tank, together with ration controllers , form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing media to mix water and fire fighting foam together to generate an effective extinguishing medium.

The bladder tank technology is a reliable and precise mixing method that is wide spread in the fire fighting industry. This method allows the water/foam ration to remain stable by automatically adjustin the variable flow rates and pressure conditions that may occur durinosystem operation.

This feature makes bladder tank particularly suitable for multiple hazard systems ,sprinkler systems and any other system operationg under variable , non predictable flow and pressure conditions.
